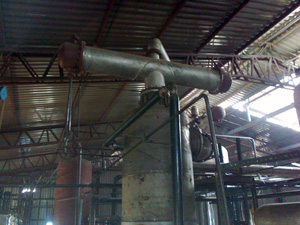

Fatty Acids Distillation plant is broadly divided into three main section. vis. de-gasification, pre-cut system and main distillation system. These main process section are supported for optimum cooling based on thermostatised water system.

» Crude fatty acids mass is filtered, pre-heated and fed to the de-gasifying unit operating under vacuum, where it is dried and de-gasified. Crude fatty acids, from de-gasifier is heated through thermic fluid exchanger and fed to the pre-cut column.

» The pre-cut column operates under vacuum and is composed of various section; starting from bottom, the main sections are vaporization section, Two sections of distillation packing bed, pump-around section and scrubbing section. From bottom of the column, the product is sent to Fatty Acid Distillation column.

» The main distillation column operates under vacuum and is composed of various section; starting from bottom the main sections are vaporization section, stripping section, one set of washing section, one pump-around section and one scrubbing section
